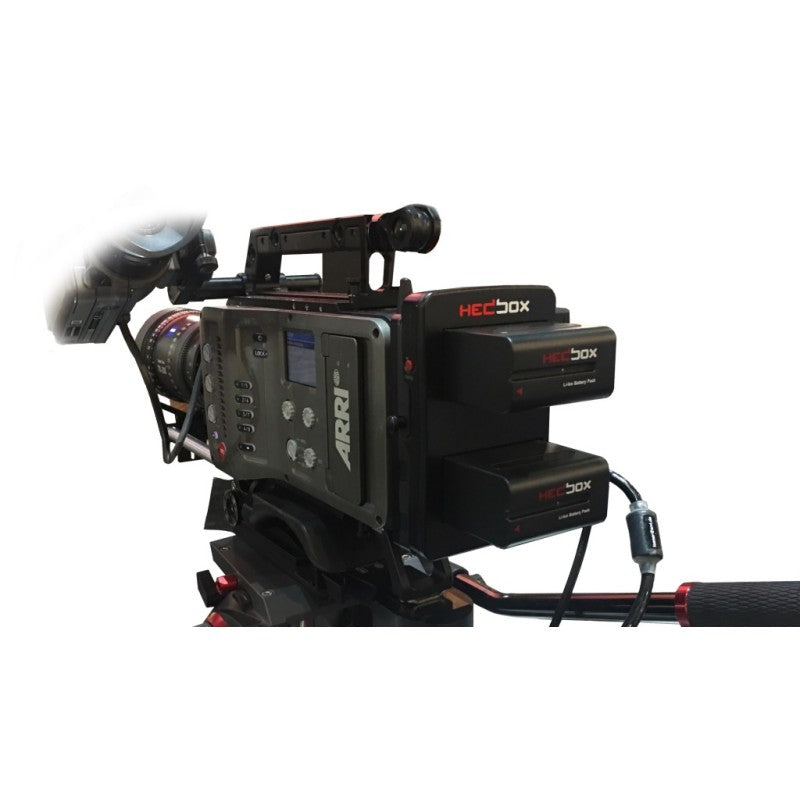

Hedbox V-lock Battery adapter Plate uses 2X Sony NP-F to create 14.4V V-Lock Battery, D-Tap Out

V-lock Battery Adapter Plate uses 2X Sony NP-F to create a 14.4V V-Lock battery, D-Tap output

Affordable Solution for Professional Broadcast Cameras
HBP-NPF allows you to power any V-Mount/V-Lock professional broadcast camera with two standard L-series or NP-F high-capacity batteries. With this solution, you will be able to replace the usually expensive 14.8V Processional V-lock batteries, which are the standard for powering all professional broadcast cameras worldwide.

HBP-NPF plate uses two standard 7.2V NP-F style battery packs
HBP-NPF allows you to power any V-Mount/V-Lock professional broadcast camera with two standard L-series or NP-F high-capacity batteries. The combined voltage of the two L-series or NP-F batteries should be 14.4V ~ 14.8V, which is the standard output power of a V-Mount battery pack used by all professional broadcast cameras worldwide.

V-Mount linking support
HBP-NPF has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure a secure and reliable mount.

Integrated D-tap output 14.8 V 72 W, 6 A
A D-tap DC output socket is provided on the side of the HBP-NPF battery pack. With this external power function, you can connect an on-camera LED light, a video monitor, a wireless transmitter, or a digital recorder and get simultaneous power with the battery connected to the camera or separately as a standalone power station. The maximum power from the D-tap is 72 W, 6 A.

4-LED power monitoring indicator
The HBP-NPF V-Lock battery converter contains a built-in 4-LED power meter which, at the touch of a button, displays the remaining battery percentage at 100%, 75%, 50% or 25%.

Charging on a regular V-lock charger
The HBP-NPF V-Lock battery converter can be used as a charging station for the regular Sony NP-F / L battery series. Simply connect the V-Lock battery converter with 2 (two) NP-F / L batteries and the converter will distribute charging power to both batteries simultaneously
